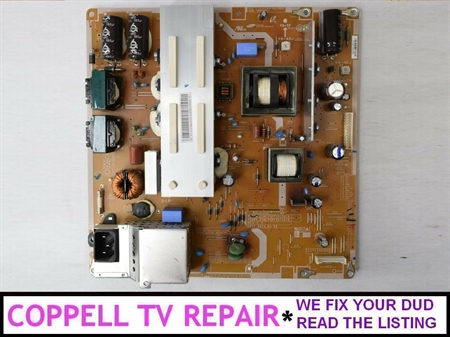

Coppell TV Repair LLC offers a REPAIR SERVICE for the power supply board BN44-00512A found in Samsung PN60E530A3F / PN60E530A3FXZA plasma TV.
The same TV can also be coming with a different board inside, the BN44-00513A for which we have a separate listing, which can be reached by searching for it or through a link on this page.
HOW DOES IT WORK
To have us examine and possibly repair your board(s) you need to send them or bring them to us.
Start the repair service request through the "Initiate service request" button on the page. Repeat customers are advised to log-in and new customers will have to fill-in a short form with contact information needed for communication and invoicing.
An email with shipping instructions is automatically sent once you submit the form to the email address you provide; it is also shown on your screen.
Following the instructions you package your board(s) and attach the first page of the shipping instructions so that we make a link between the boards and the service request when we receive your package.
You then send the board as shown on the picture to us. You pay for the shipping to a carrier of your choice and nothing to us at this point.
Presently we do not charge in advance, but only after inspecting and possibly servicing the board(s) we receive.
The price shown is for evaluation, repair, test and return within USA of the boards listed in the title or explicitly named in the listing, provided they meet our requirements upon arrival (see related section).
Boards returned abroad tend to have higher shipping cost that will increase total cost of service beyond the amount shown.
Once we receive the package and open it we inspect the board(s) sent.
If the board(s) do not meet our criteria we communicate the problem with you and offer options, the first of them being returning the board(s) back for sole cost of return S&H. Other options may include surcharge for board restoration, board replacement, change of pricing or warranty terms etc.
We may not give any options and simply reject to service a board that was damaged beyond repair (see example here).
If the board(s) pass our criteria we conduct test to determine functionality.
If test passes OK and board(s) appear in working order we communicate that and offer options, among which returning the board(s) without change; we invoice a testing fee and return S&H charge.
We test all boards that are being sent and for every board we test we assess testing fee as described.
If board(s) come in assemblies that require additional dismantling on our end (i.e. with more than what is shown on the pictures) we reserve the right to charge up to $10 for dismantling and re-assembling what was sent plus eventually additional shipping costs if resulting assembly requires larger box and/or is heavier than the regular board as shown.
Boards that test out bad are analyzed and we attempt to repair them.
If we succeed we send a payment request for the amount specified in the listing.
If we fail to repair the board(s) we send you an email with details and usually only request that you pay for the return shipping and nothing else.
Please make sure your TV has the same board before proceeding with this service or contact us if yours is different to see if we offer repair service for it.
BOARD FAILURE SYMPTOMS
Power supply boards can fail in different ways. We have likely not seen most of the ways this power supply board could fail, but here are the ways we've seen :
- Totally dead TV, showing no indication of power , no front LED and no response to attempt to power on via unit or remote power on button; main power supply fuse (next to the AC connector) tests open and sometimes there are visible signs of burn under or above the board, next to transistors mounted on heat sinks - any of these signs is a definite sign of a power supply failure; it is possible, but not likely there would be other failures in the TV;
- TV showing standby power LED and (usually) responding to power on command by flashing front LED indicator; display may come on after a few attempts to power on, but over time it gets to a point where it just won't start.
On the PSU low voltage can sometimes be observed for Vs and Va voltages.
Note that a very similar issue can be also caused by a failure in the Y-Main board with only difference that when YSUS is bad the Vs and Va voltages coming out of the PSU would NOT stay constant - they would raise to (usually) proper values and then start fading down.
All packages we receive are placed in a FIFO processing queue.
It takes 2-5 business days for a package to make its way from the back to the front of the queue.
Once picked up for processing, we make money if we manage to fix the board(s) inside for between 30 and 60 minutes.
Of coruse that isn't always possible, not to mention sometimes there is more than one board in a package.
Add to it that we can't know how many packages we will receive at any given day, how many boards will each contain and how bad the damage on them could be.
Please do not call us a mere few days after you sent your package to inquiry about the status of your service...we just do not have the resources to be giving the same answer to everyone and it only slows us down!
Look at the tracking number, see when it was delivered, give it at leat 2-3 business days (preferably four) and if you have not heard anything from us then contact us saying the package was delivered on this and that date and we'll go look for it.
It's in everyone's interest that we work as fast as possible and interrupting technicians (who answer the phones) to make them go search for package in the queue only to tell you it's there doesn't help anyone.
REQUIREMENTS FOR THE BOARD(S) SENT IN FOR SERVICE
The board(s) we receive must be physically intact and must have not been tampered with or serviced before.
The advertised flat rate for repair service is only valid when the above conditions are met.
Exceptions are possible and often applied for minor repair attempts, but we reserve the sole right to judge if and when we would consider a repair minor.
If we receive board(s) that fails the above conditions we will contact the sender and usually offer two options: 1) returning the board(s) for the sole cost of the return shipping; or 2) continuing the repair service at a higher cost in case of success.
It is also possible, depending on the condition of the board, to eliminate the second possibility and just flat our reject having to service the board.
Subject to situation and availability we may also recommend replacement of the board, again at the higher than advertised price for repair.
In all cases you will have the option to receive your own board(s) back for the sole cost of the return shipping.
